BOK
BOK 06 - 00 - 001
Threaded bolt in standard version, mountable for rod ends and spherical plain bearings, series K, for Classic- and Basic-Line

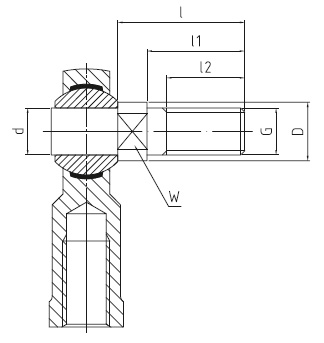

Measurements
| d (Bore) | 6 mm |
|---|---|
| l mm | 18.5 mm |
| l₁ | 13 mm |
| l₂ | 10 mm |
| Thread (g) | M 6 |
| D | 9 mm |
| W (A/F) | 8 mm |
| Weight | 0.01 kg |
Details
Special characteristics:
- Threaded bolts are used to form corner joints and can be fitted in rod ends and spherical plain bearings.
From bore diameter 6 mm to 20 mm.
