DDG-00-100
DDG 06 -00 -100
Washers for addinional protection of bearing, mountable for rod ends series K, for VORBAL Classic- and Basic-Line

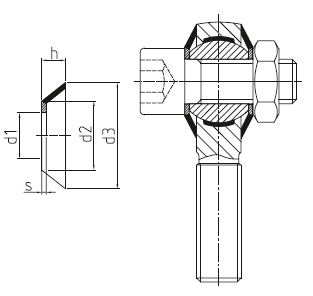

Measurements
| d₂ (Head ø) | 9.53 mm |
|---|---|
| d₁ | 6.25 mm |
| d₃ | 12.7 mm |
| h | 3.05 mm |
| Weight | 0.001 kg |
| s mm | 0.69 mm |
| rod end size | BEF / BEM 06 |
Details
Special characteristics:
- Washers prevent the penetration of coarse dirt particles inside the bearing.
From bore diameter 5 mm to 30 mm.
