DFKB-X
DFKB 06 x 12
Folding spring bolts suitable for clevises according to DIN 71752 form G

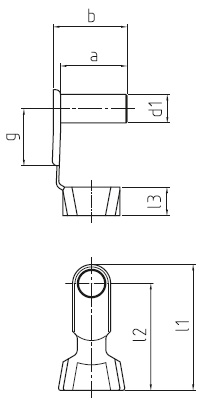

Measurements
| d₁ | 6 mm |
|---|---|
| g mm | 12 mm |
| l₁ | 28 mm |
| l₂ | 23 mm |
| l₃ | 6.5 mm |
| Weight | 0.0046 kg |
| a mm | 14 mm |
| b mm | 16 mm |
Details
Special characteristics:
- Used for linear movements,
- Suitable for the fixing of pneumatic cylinders or gas springs,
- All clevises with appropriate folding spring bolts are of steel and protected against corrosion by galvanisation;
Sizes from 04x08 to 20x40.
