DGS
DGS 1
Rubber protector caps for additional protection of rod end, series K for VORBAL Classic- and Basic-Line

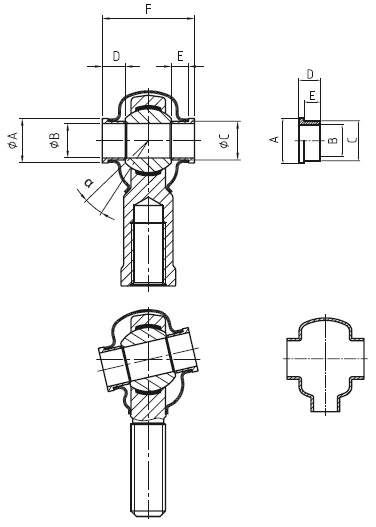

Measurements
| B (Width) | 6 mm |
|---|---|
| D | 6 mm |
| α (Tilt) | 13 |
| Weight | 0.003 kg |
| C | 8.7 mm |
| a mm | 11 mm |
| rod end size | BEF / BEM 06 |
| spacer bush type | DB 06 |
| e mm | 4 mm |
| f mm | 21 mm |
Details
Special characteristics:
- Rubber protector caps prevent the penetration of coarse dirt particles inside the bearing.
From bore diameter 6 mm to 30 mm.
