GW
GW 06 - 00 - 2
Threaded links with female thread, preparation of welds for compilation a linkage, with standard thread

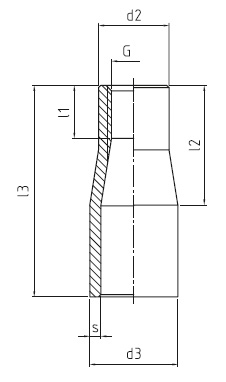

Measurements
| d₂ (Head ø) | 9 mm |
|---|---|
| Thread (g) | M 6 |
| d₃ | 14 mm |
| l₁ | 9 mm |
| l₂ | 18 mm |
| l₃ | 30 mm |
| Weight | 0.024 kg |
| s mm | 2.2 mm |
| yield stress n | 14200 |
Details
Special characteristics:
- Threaded links can be combined with all our rod ends with male threads of the Premium, Classic and Basic lines (standard versions);
- They are used for the independent production of heavy-duty system linkages.
From thread M6 to M30x2.
