NUTS

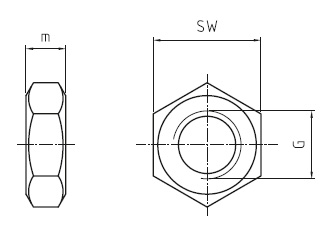

Dimensional drawing
NUTS drawing

NUTS

08-00-936 -1 / -2

08-00-936-1

Hexagonal locking nuts, in standard version, thin type, similar to ISO 4035 / 8675 (DIN 439 / 936)

Request a quote All sizes

Measurements

Thread (g)M 8
Weight0.004 kg
sw mm13 mm
m mm5 mm

Details

Special characteristics:

  • Hexagonal locking nuts are available with standard threads and fine threads. Available with our rod ends of the Premium-, Classic- and Basic lines.

From thread M5 to M60x4.

Other sizes in this series

View series
Specification

05-00-936 -1 / -2

05-00-936-1

Thread (g) M 5
Weight 0.002 kg
sw mm 8 mm
m mm 2.7 mm
Specification

06-00-936 -1 / -2

06-00-936-1

Thread (g) M 6
Weight 0.003 kg
sw mm 10 mm
m mm 3.2 mm
Specification

10-00-936 -1 / -2

10-00-936-1

Thread (g) M 10
Weight 0.008 kg
sw mm 17 mm
m mm 6 mm
Specification

10-01-936 -1 / -2

10-01-936-1

Thread (g) M 10 x 1
Weight 0.008 kg
sw mm 17 mm
m mm 6 mm
Specification

10-02-936 -1 / -2

10-02-936-1

Thread (g) M 10 x 1,25
Weight 0.008 kg
sw mm 17 mm
m mm 6 mm
Specification

12-00-936 -1 / -2

12-00-936-1

Thread (g) M 12
Weight 0.01 kg
sw mm 19 mm
m mm 7 mm
