DGF-DO
DGF 100 DO
Hydraulic-rod ends with pressed spherical plain bearing, with square welding end, maintenance required

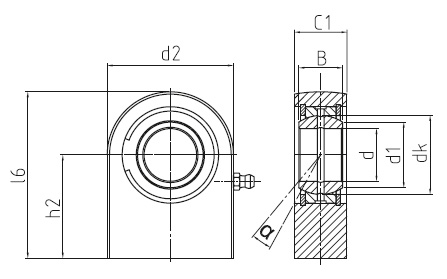

Measurements
| d (Bore) | 100 mm |
|---|---|
| d₂ (Head ø) | 250 mm |
| B (Width) | 70 mm |
| C₁ | 70 mm |
| d₁ | 109.5 mm |
| dₖ | 130 mm |
| h2 mm | 170 mm |
| l6 mm | 295 mm |
| α (Tilt) | 7 |
| Weight | 31.5 kg |
| C (Dynamic) | 488 kN |
| C₀ (Static) | 1200 kN |
| Radial clearance | 8 - 165 |
Details
Special characteristics:
- Used for heavy static or changing loads, shock loads.
- Suitable for the fixing of piston rod ends and hydraulic cylinder bases;
- All rod ends can be greased subsequently by means of a conical grease nipple.
- Hydraulic rod ends are fixed as standard with maitenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings; with square welding end. On request, the rod ends may be combined with the following maintenance-required or maintenance-free spherical plain bearings:
- maintenance required: DGE_ES-2RS; DGEG_ES; DGEG_ES-2RS; DGE_LO; DGE_HO-2RS;
- maintenance-free: GLE; GLE NIRO; GLG; DGE_UK; DGE_UK-2RS; DGE_FW; DGE_FW-2RS
For shaft diameters from 20 mm to 120 mm
