DGIHO-K-DO
DGIHO-K 100 DO
Hydraulic-rod ends with pressed spherical plain bearing, female thread, with slot and clambing arrangement, similar to DIN 24555, maintenance required

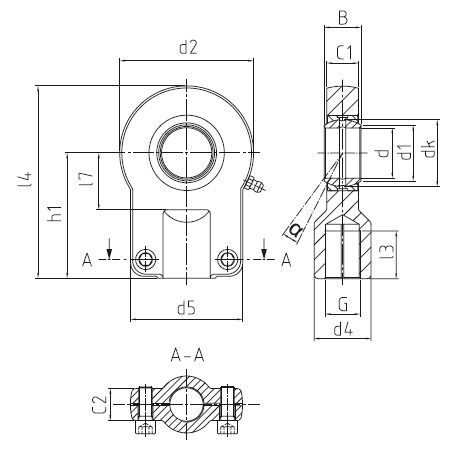

Measurements
| d (Bore) | 100 mm |
|---|---|
| d₂ (Head ø) | 240 mm |
| l₄ | 360 mm |
| Thread (g) | M 64 x 2 |
| B (Width) | 70 mm |
| C₁ | 55 mm |
| d₁ | 109.5 mm |
| d₄ | 110 mm |
| d5 mm | 190 mm |
| h₁ | 240 mm |
| l₃ | 86 mm |
| l₇ | 116 mm |
| α (Tilt) | 6 |
| Weight | 27.3 kg |
| C (Dynamic) | 488 kN |
| C₀ (Static) | 692 kN |
| Radial clearance | 8 - 165 |
| c2 mm | 55 mm |
Details
Special characteristics:
- Used for alternating radial loads;
- Rod ends from size 25 can be greased subsequently by means of a conical grease nipple.
- Female thread with slot, clamping arrangement, connection dimensions similar to DIN 24555.
- Hydraulic rod ends are fixed as standard with maintenance required DGE_E (size 12) and DGE_ES (size 16-100) radial-spherical-plain bearings, and fixed with retaining rings. On request, the rod ends may be combined with the following maintenance-required or maintenance-free spherical-plain bearings:
- maintenance required: DGE_ES-2RS; DGEG_ES; DGEG_ES-2RS; DGE_LO; DGE_HO-2RS;
- maintenance-free: GLE; GLE NIRO; GLG; DGE_UK; DGE_UK-2RS; DGE_FW; DGE_FW-2RS
For shaft diameters from 12 mm to 100 mm. Left-hand thread only on request.
