DGK-DO
DGK 35 DO
DGK 35 DO
Hydraulic-rod ends with pressed spherical-plain bearing, with round welding slope and dowel pin, according to DIN ISO 12240-4, maintenance required

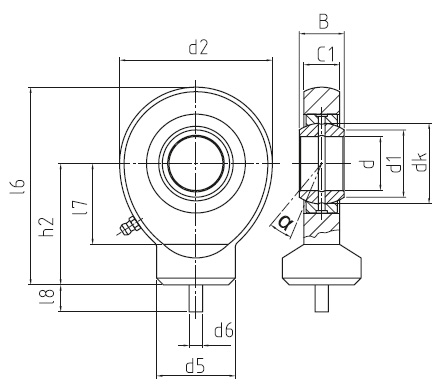

Measurements
| d (Bore) | 35 mm |
|---|---|
| d₂ (Head ø) | 82 mm |
| B (Width) | 25 mm |
| C₁ | 21 mm |
| d₁ | 39.7 mm |
| d5 mm | 47 mm |
| d6 mm | 4 mm |
| dₖ | 47 mm |
| h2 mm | 61 mm |
| l6 mm | 102 mm |
| l₇ | 43 mm |
| l8 mm | 6 mm |
| α (Tilt) | 6 |
| Weight | 0.96 kg |
| C (Dynamic) | 79 kN |
| C₀ (Static) | 100 kN |
| Radial clearance | 8 - 100 |
Details
Special characteristics:
- Used for heavy static or changing loads, shock loads.
- Suitable for the fixing of piston rod ends and hydraulic cylinder bases;
- Rod ends from size 25 can be greased subsequently by means of a conical grease nipple.
- Hydraulic rod ends are fixed as standard with maintenance required DGE_E (size 10, 12) and DGE_ES (size 15-80) radial-spherical-plain bearings; with round welding stud and dowel pin, connection dimensions in accordance with DIN ISO 12240-4. On request, the rod ends may be combined with the following maintenance-required or maintenance-free spherical-plain bearings:
- maintenance required: DGE_ES-2RS, DGE_LO; DGE_HO-2RS; DGEG_ES(-2RS);
- maintenance-free: GLE; GLG; DGE_UK(-2RS); DGE_FW(2RS)
For shaft diameters from 10 mm to 80 mm.
