DGK-SK
DGK 80 SK
Hydraulic-rod ends with pressed spherical plain bearing, female thread, with slot and clambing arrangement, maintenance required

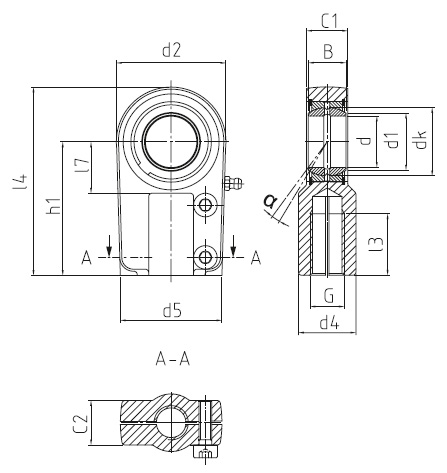

Measurements
| d (Bore) | 80 mm |
|---|---|
| d₂ (Head ø) | 176 mm |
| l₄ | 305 mm |
| Thread (g) | M 90 x 3 |
| B (Width) | 60 mm |
| C₁ | 55 mm |
| d₁ | 89.4 mm |
| d₄ | 125 mm |
| d5 mm | 168 mm |
| dₖ | 105 mm |
| h₁ | 210 mm |
| l₃ | 120 mm |
| l₇ | 80 mm |
| α (Tilt) | 6 |
| Weight | 16 kg |
| C (Dynamic) | 320 kN |
| C₀ (Static) | 712 kN |
| Radial clearance | 8 - 142 |
| c2 mm | 55 mm |
Details
Special characteristics:
- Used for alternating radial loads;
- All rod ends can be greased subsequently by means of a conical grease nipple.
- Female thread with slot, clamping arrangement.
- Hydraulic rod ends are fixed as standard with maintenance required DGE_ES spherical-plain bearing and fixed with retaining rings.
For shaft diameters from 25 mm to 160 mm.
