CF OK
CF16 OK M16
Self-lubricating rod ends, female thread, series K, DIN ISO 12240-4, maintenance free

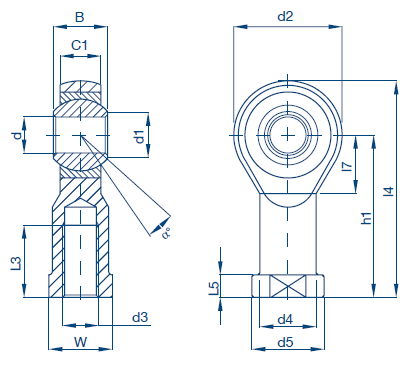

Measurements
| C₀ (Static) | 48 kN |
|---|---|
| d (Bore) | 16 mm |
| d₁ | 19.3 mm |
| d₂ (Head ø) | 42 mm |
| d₃ | M 16 |
| d₄ | 22 mm |
| d5 mm | 27 mm |
| dₖ | 28.57 mm |
| h₁ | 64 mm |
| l₃ | 28 mm |
| l₄ | 85 mm |
| l₅ | 8 mm |
| l₇ | 23 mm |
| Radial clearance | 8 - 75 |
| α (Tilt) | 15 |
| B (Width) | 21 mm |
| C₁ | 15 mm |
| W (A/F) | 22 mm |
| Weight | 0.222 kg |
Details
CHIAVETTE UNIFICATE rod ends with steel/steel coupling, series K, female thread, self-lubricating, according to DIN ISO 12240-4
Housing: up to size 12 automatic steel 11SMnPb30 (1.0718), from size 14 carbon steel C40 (1.1186), galvanized surface free of Cr VI
Outer ring: sintered steel impregnated with high efficiency lubricating fluid
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1,3505)
Maintenance: maintenance-free
Temperature range: -30° C to +120° C
