CFP Standard
CFP5 M4
Self-lubricating rod ends with PTFE, female thread, series K, DIN ISO 12240-4, maintenance free

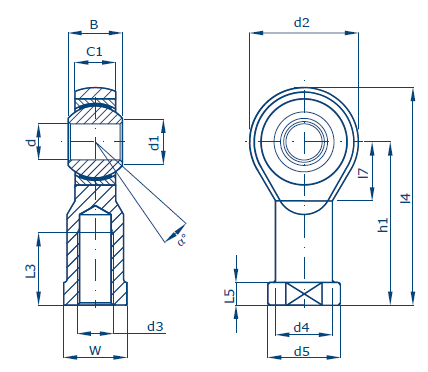

Measurements
| C₀ (Static) | 6 kN |
|---|---|
| d (Bore) | 5 mm |
| d₁ | 7.7 mm |
| d₂ (Head ø) | 18 mm |
| d₃ | M 4 |
| d₄ | 9 mm |
| d5 mm | 11 mm |
| dₖ | 11.11 mm |
| h₁ | 27 mm |
| l₃ | 10 mm |
| l₄ | 36 mm |
| l₅ | 4 mm |
| l₇ | 10 mm |
| Radial clearance | 5 - 45 |
| α (Tilt) | 13 |
| B (Width) | 8 mm |
| C₁ | 6 mm |
| W (A/F) | 9 mm |
| Weight | 0.02 kg |
Details
CHIAVETTE UNIFICATE rod ends with steel/PTFE coupling, series K, female thread, self-lubricating, according to DIN ISO 12240-4
Housing: up to size 12 automatic steel 11SMnPb30 (1.0718), from size 14 carbon steel C40 (1.1186), galvanized surface free of Cr VI
Outer ring: brass and PTFE bonded on the inner surface
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
Maintenance: maintenance-free
Temperature range: -40° C to +200° C
