CMP Standard
CMP10 M10
Self-lubricating rod ends with PTFE, male thread, series K, DIN ISO 12240-4, maintenance free

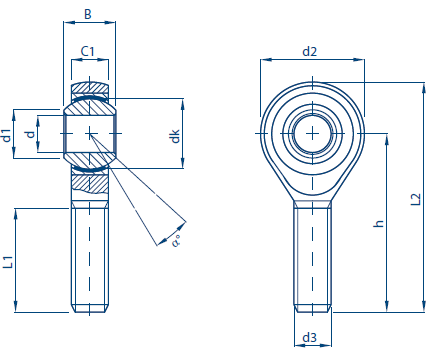

Measurements
| C₀ (Static) | 13 kN |
|---|---|
| d (Bore) | 10 mm |
| d₁ | 12.9 mm |
| d₂ (Head ø) | 28 mm |
| d₃ | M 10 |
| dₖ | 19.05 mm |
| h | 48 mm |
| l₁ | 28 mm |
| l₂ | 62 mm |
| Radial clearance | 7 - 50 |
| α (Tilt) | 13 |
| B (Width) | 14 mm |
| C₁ | 10.5 mm |
| Weight | 0.064 kg |
Details
CHIAVETTE UNIFICATE rod ends with steel/PTFE coupling, series K, male thread, self-lubricating, according to DIN ISO 12240-4
Housing: up to size 12 automatic steel 11SMnPb30 (1.0718), from size 14 carbon steel C40 (1.1186), galvanized surface free of Cr VI
Outer ring: brass and PTFE bonded on the inner surface
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
Maintenance: maintenance-free
Temperature range: -40° C to +200° C
