CMX stainless steel
CMX6 M6
Self-lubricating rod ends stainless steel, male thread, series K, DIN ISO 12240-4, maintenance free

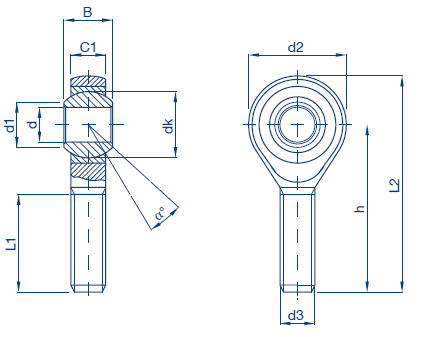

Measurements
| C₀ (Static) | 4 kN |
|---|---|
| d (Bore) | 6 mm |
| d₁ | 8.9 mm |
| d₂ (Head ø) | 20 mm |
| d₃ | M 6 |
| dₖ | 12.7 mm |
| h | 36 mm |
| l₁ | 21 mm |
| l₂ | 46 mm |
| Radial clearance | 5 - 50 |
| α (Tilt) | 13 |
| B (Width) | 9 mm |
| C₁ | 6.75 mm |
| Weight | 0.021 kg |
Details
CHIAVETTE UNIFICATE stainless steel rod ends with stainless steel/bronze coupling, series K, male thread, self-lubricating, according to DIN ISO 12240-4
Housing: stainless steel X5CrNi1810 (1.4301 - AISI 304)
Outer ring: sintered bronze impregnated with high efficiency lubricating fluid
Inner ring: tempered, ground and polished steel for bearings X20Cr13 (1.4021 - AISI 420)
Maintenance: maintenance-free
Temperature range: -30° C to +120° C
