DGAR-UK
DGAL 06 UK
DGAL 6 UK
Rod ends with pressed spherical-plain bearing, steel/PTFE, series E, male thread, according to DIN ISO 12240-4, maintenance free

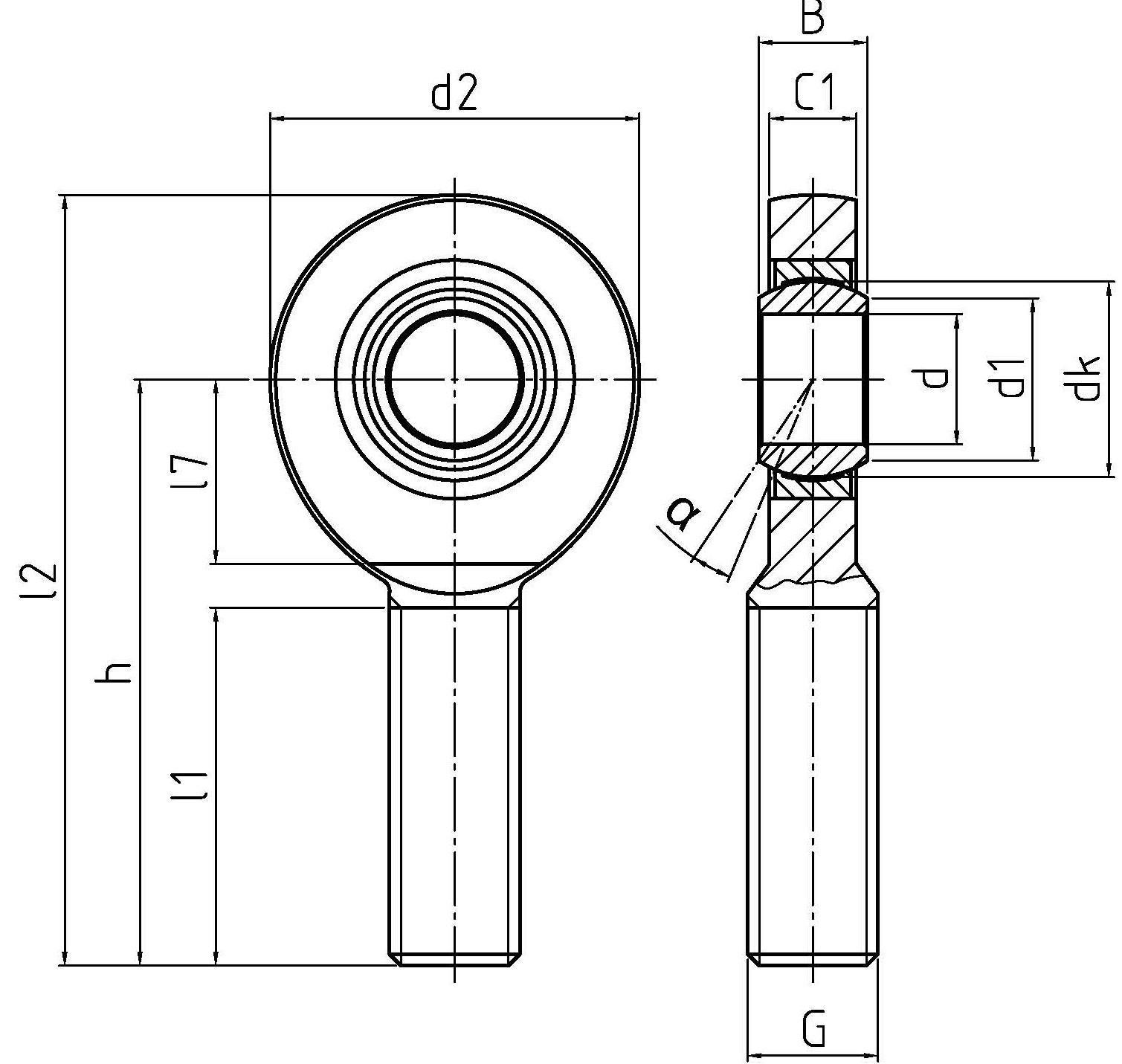

Measurements
| d (Bore) | 6 mm |
|---|---|
| d₂ (Head ø) | 21 mm |
| Thread (g) | M 6 |
| B (Width) | 6 mm |
| C₁ | 4.4 mm |
| d₁ | 8 mm |
| dₖ | 10 mm |
| h | 36 mm |
| l₁ | 18 mm |
| l₂ | 46.5 mm |
| l₇ | 12 mm |
| α (Tilt) | 13 |
| Weight | 0.017 kg |
| C (Dynamic) | 2.2 kN |
| C₀ (Static) | 6.6 kN |
| Radial clearance | 0 - 32 |
Details
Special characteristics:
- Suitable for use with unilaterally acting loads;
- Rod end housings of forged and heat-treated steel, protected against corrosion by galvanisation.
- Rod ends are pressed as standard with DGE_UK radial-spherical-plain bearing.
- Sliding combination: heat-treated steel with bronze - PTFE - composite,
- Joint ball of ball bearing steel, hardened, ground, polished and, up to size 12, with hard-chrome plated running surface, giving effective protection against corrosion;
