DGIR-UK-2RS
DGIL 50 UK-2RS
Rod ends with pressed spherical-plain bearing, steel/PTFE, series E, female thread, with -2RS lip seals on both sides, according to DIN ISO 12240-4, maintenance free

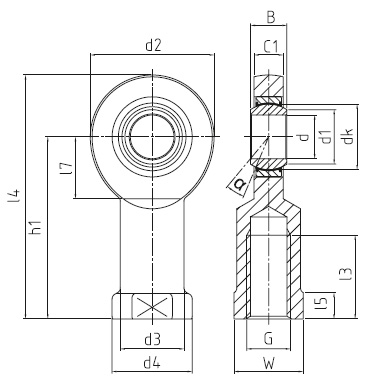

Measurements
| d (Bore) | 50 mm |
|---|---|
| d₂ (Head ø) | 112 mm |
| l₄ | 216 mm |
| Thread (g) | M 45 x 3 |
| B (Width) | 35 mm |
| C₁ | 30 mm |
| d₁ | 55 mm |
| d₃ | 62 mm |
| d₄ | 75 mm |
| dₖ | 66 mm |
| h₁ | 160 mm |
| l₃ | 68 mm |
| l₇ | 60 mm |
| α (Tilt) | 6 |
| Weight | 3.5 kg |
| C (Dynamic) | 112 kN |
| C₀ (Static) | 232 kN |
| Radial clearance | 0 - 60 |
| W (A/F) | 65 mm |
Details
Special characteristics:
- Suitable for use with unilaterally acting loads;
- Rod end housings of forged and heat-treated steel, protected against corrosion by galvanisation.
- Rod ends are pressed as standard with DGE_UK-2RS radial-spherical-plain bearing.
- Sliding combination: heat-treated steel with bonded PTFE - fabric;
- Joint ball of ball bearing steel, hardened, ground, polished and with hard-chrome plated running surface, giving effective protection against corrosion;
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
