DSA-T/K
DSA 05 T/K
DSA 5 T/K
Rod ends with pressed spherical-plain bearing, steel/PTFE, series K, male thread, according to DIN ISO 12240-4, maintenance free

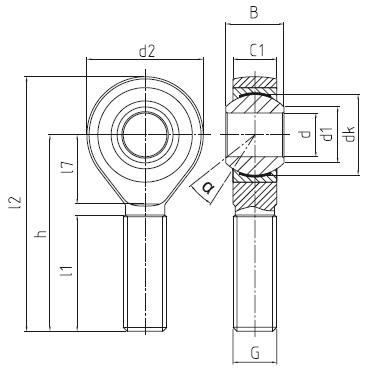

Measurements
| d (Bore) | 5 mm |
|---|---|
| d₂ (Head ø) | 18 mm |
| Thread (g) | M 5 |
| B (Width) | 8 mm |
| C₁ | 6 mm |
| d₁ | 7.7 mm |
| dₖ | 11.1 mm |
| h | 33 mm |
| l₁ | 19 mm |
| l₂ | 42 mm |
| l₇ | 9 mm |
| α (Tilt) | 13 |
| Weight | 0.013 kg |
| C (Dynamic) | 2.9 kN |
| C₀ (Static) | 4.8 kN |
| Radial clearance | 0 - 32 |
Details
Special characteristics:
- Suitable for use in situations of low speeds and dynamic loads;
- Rod end housings of forged and heatd-treated steel, protected against corrosion by galvanisation.
- Rod ends are pressed as standard with DG_PW radial-spherical-plain bearing.
- Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material.
