DSI-ES
DSI 06 E
DSI 6 E
Rod ends with pressed spherical-plain bearing, female thread, series E, according to DIN ISO 12240-4, maintenance required

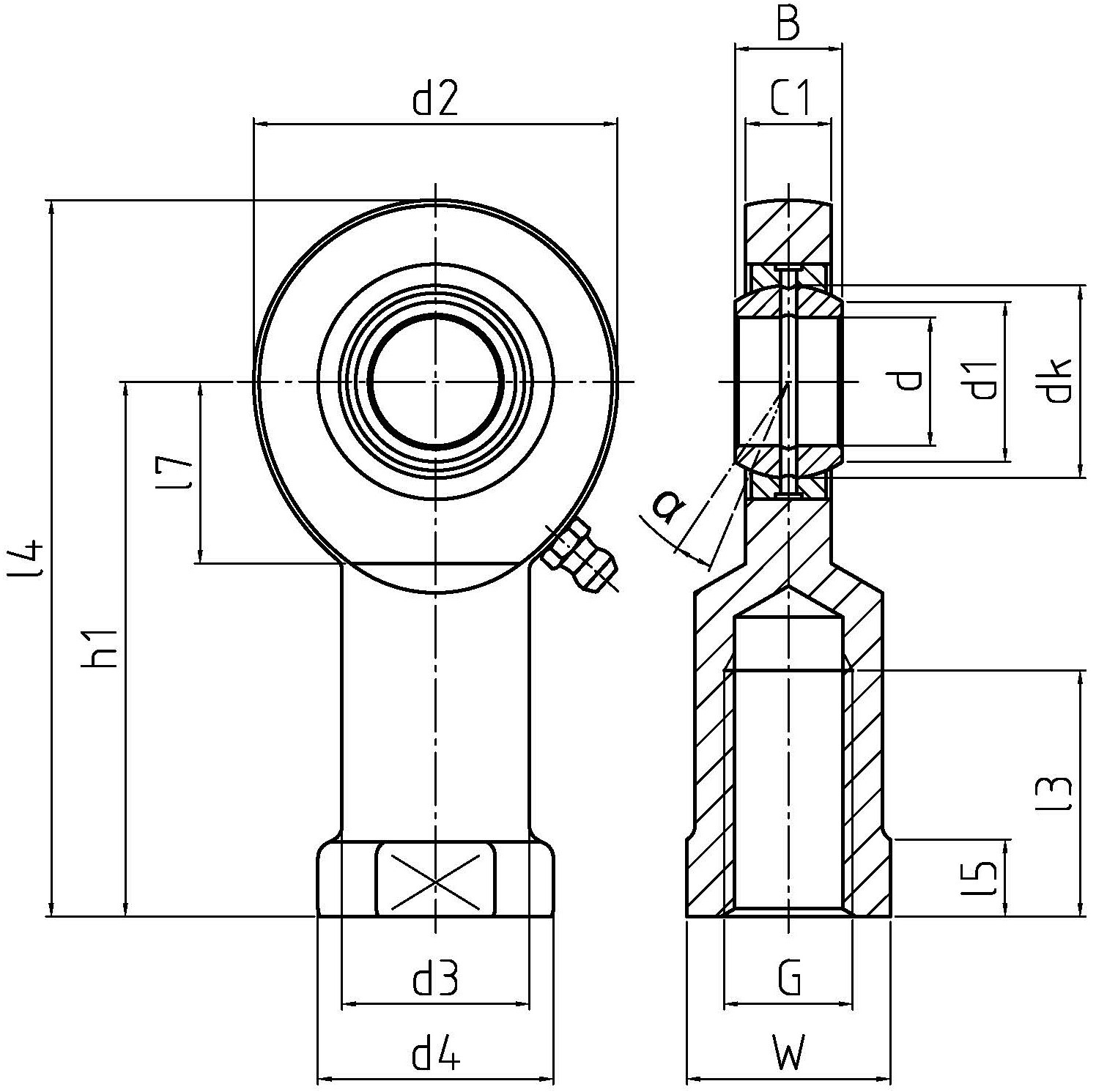

Measurements
| d (Bore) | 6 mm |
|---|---|
| d₂ (Head ø) | 21 mm |
| l₄ | 40.5 mm |
| Thread (g) | M 6 |
| B (Width) | 6 mm |
| C₁ | 4.4 mm |
| d₁ | 8 mm |
| d₃ | 10 mm |
| d₄ | 13 mm |
| dₖ | 10 mm |
| h₁ | 30 mm |
| l₃ | 11 mm |
| l₇ | 12 mm |
| α (Tilt) | 13 |
| Weight | 0.021 kg |
| C (Dynamic) | 2.2 kN |
| C₀ (Static) | 6.6 kN |
| Radial clearance | 8 - 68 |
| W (A/F) | 11 mm |
Details
Special characteristics:
- Suitable for use with high alternating loads;
- Rod end housings of forged and heat-treated steel, protected against corrosion by galvanisation.
- Rod ends are pressed as standard with DGE_E (from size 6-12) and DGE_ES (from size 15-80) radial-spherical-plain bearing.
- Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple.
