EMN -2RS
EMN 20 - 30 - 501
Rod ends with pressed spherical-plain bearing, with -2RS lip seals on both sides, male thread, series E/EH, DIN ISO 12240-4, maintenance required

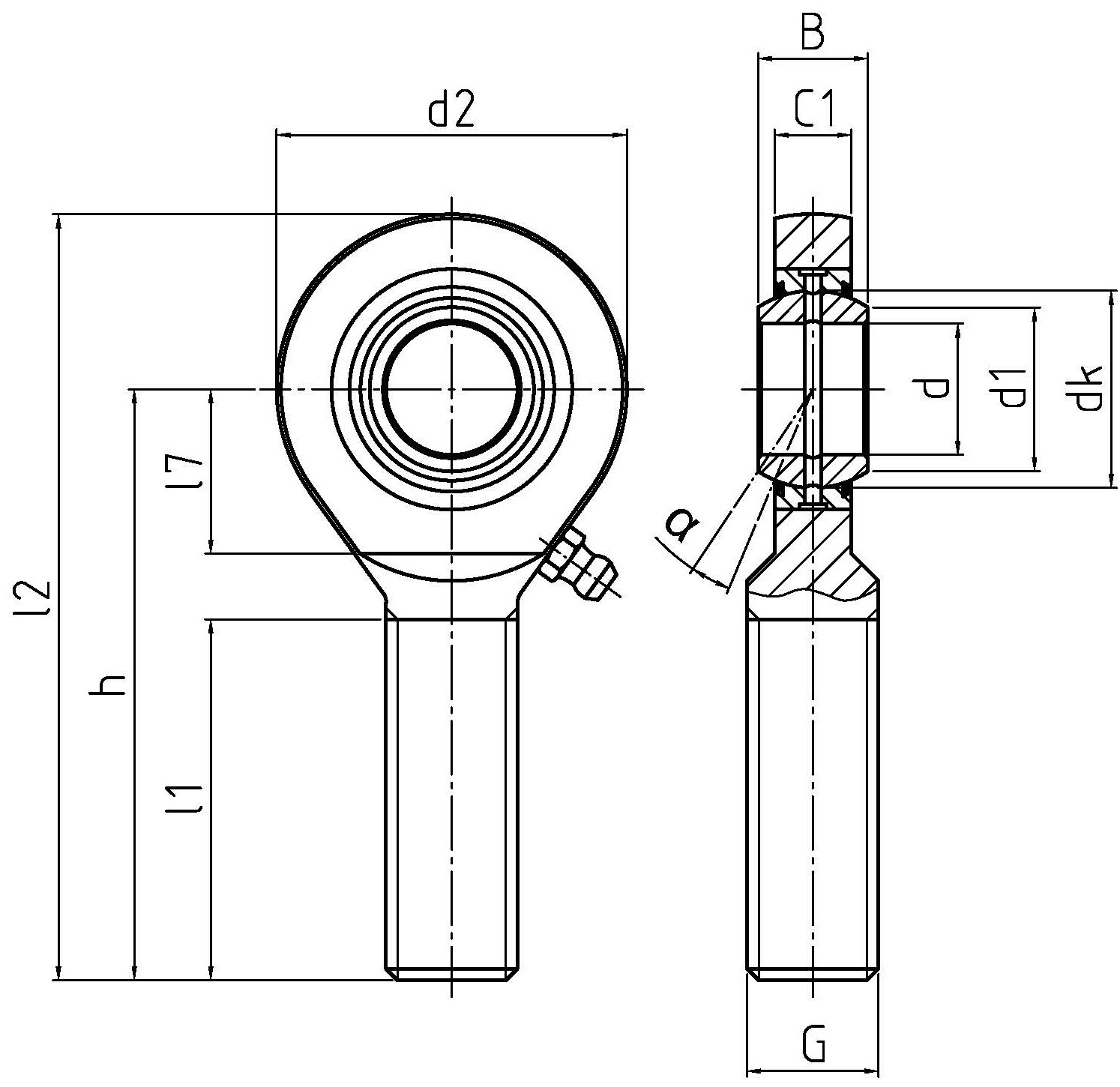

Measurements
| d (Bore) | 20 mm |
|---|---|
| d₂ (Head ø) | 51 mm |
| Thread (g) | M 20 x 1,5 |
| B (Width) | 16 mm |
| C₁ | 12 mm |
| d₁ | 24 mm |
| dₖ | 29 mm |
| h | 78 mm |
| l₁ | 47 mm |
| l₂ | 103.5 mm |
| l₇ | 25 mm |
| α (Tilt) | 10 |
| Weight | 0.31 kg |
| C (Dynamic) | 25.2 kN |
| C₀ (Static) | 60 kN |
| Radial clearance | 40 - 82 |
Details
Special characteristics:
- Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements;
- All rod end housings are made of forged steel, tempered, extremly high loads resistant and protected against corrosion by galvanisation.
- Rod ends are pressed as standard with DGE_ES-2RS radial-spherical-plain bearing.
- Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Further special grease nipples available on request;
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
