BRM
BRM 06 - 00 - 501
Rod ends with ball bearing, male thread, series K, DIN ISO 12240-4, low maintenance, lubrication possible

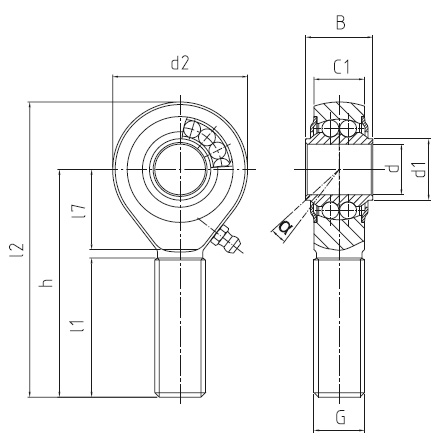

Measurements
| d (Bore) | 6 mm |
|---|---|
| d₂ (Head ø) | 20 mm |
| Thread (g) | M 6 |
| B (Width) | 9 mm |
| C₁ | 6.75 mm |
| d₁ | 9 mm |
| h | 36 mm |
| l₁ | 22 mm |
| l₂ | 46 mm |
| l₇ | 12 mm |
| α (Tilt) | 8 |
| Weight | 0.019 kg |
| C (Dynamic) | 2.8 kN |
| C₀ (Static) | 0.7 kN |
| Radial clearance | 10 - 30 |
| n max | 1350 rpm |
| Y (Axial) | 2.09 |
| Y₀ (Axial) | 2.19 |
Details
Special characteristics:
- For high speeds, wide swivelling angles or rotating movements,
- Low bearing friction,
- All rod end housings are made of forged steel, tempered, extremly high loads resistant and protected against corrosion by galvanisation.
- Low maintenance due to long-term lubrication with food-grade approval; the rod ends may be subsequently lubricated by means of a funnel or conical grease nipple. Further special grease nipples available on request;
- Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.
