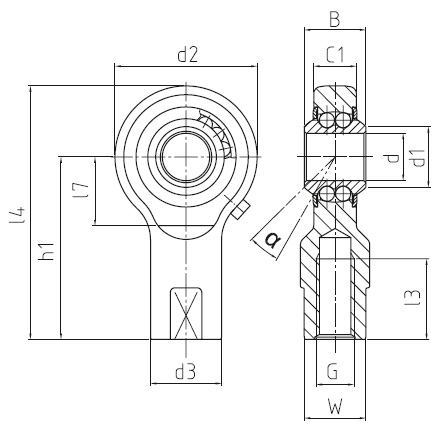

Rod ends with ball bearing, female thread, low maintenance, lubrication possible
Measurements
| d (Bore) | 10 mm |
|---|---|
| d₂ (Head ø) | 30 mm |
| Thread (g) | M 8 |
| B (Width) | 13 mm |
| C₁ | 9 mm |
| d₁ | 13 mm |
| d₃ | 15 mm |
| h₁ | 38 mm |
| l₄ | 53 mm |
| l₇ | 15 mm |
| α (Tilt) | 7 |
| Weight | 0.063 kg |
| C (Dynamic) | 2.6 kN |
| C₀ (Static) | 1 kN |
| Radial clearance | 10 - 30 |
| W (A/F) | 13 mm |
| n max | 1225 rpm |
| Y (Axial) | 1.9 |
| Y₀ (Axial) | 1.81 |
Details
Special characteristics:
- For high speeds, wide swivelling angles or rotating movements,
- Low bearing friction,
- All rod end housings are made of forged steel, tempered, extremly high loads resistant and protected against corrosion by galvanisation.
- Low maintenance due to long-term lubrication with food-grade approval; the rod ends can be greased subsequently by means of a funnel-type lubrication nipple. Further special grease nipples available on request;
- Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.
