DG-PW
DG 06 PW
DG 6 PW
Spherical-plain bearing with steel/PTFE, series K, DIN ISO 12240-1, maintenance free

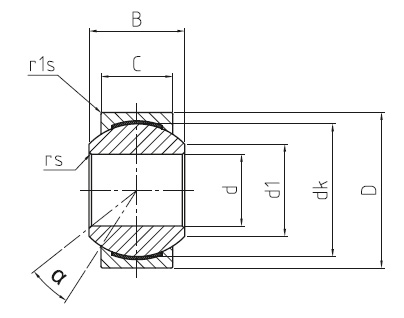

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 9 mm |
| D | 16 mm |
| d₁ | 8.9 mm |
| dₖ | 12.7 mm |
| rs mm | 0.3 mm |
| α (Tilt) | 13 |
| Weight | 0.01 kg |
| C (Dynamic) | 7.5 kN |
| C₀ (Static) | 22 kN |
| Radial clearance | 4 - 28 |
| C | 6.75 mm |
| rs1 mm | 1.2 mm |
Details
Special characteristics:
- For use under high pressure, under dynamic loads.
- Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material.
