DGE-AW
DGE 35 AW
Axial spherical-plain bearing with steel/PTFE, according to DIN ISO 12240-3, maintenance free

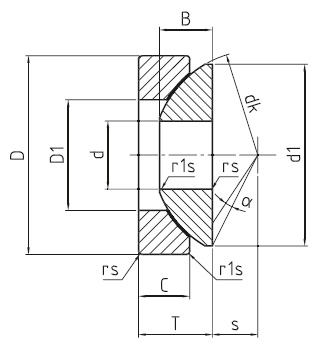

Measurements
| d (Bore) | 35 mm |
|---|---|
| B (Width) | 22 mm |
| D | 90 mm |
| d₁ | 84 mm |
| dₖ | 98 mm |
| rs mm | 1 mm |
| α (Tilt) | 6 |
| Weight | 1 kg |
| C (Dynamic) | 390 kN |
| C₀ (Static) | 780 kN |
| C | 20 mm |
| r1s mm | 0.3 mm |
| d1 mm | 52 mm |
| s mm | 22 mm |
| t mm | 28 mm |
Details
Special characteristics:
- The following applies with the axial spherical plain bearing: The take up axial forces and pass supporting forces with low moment levels into the companion structure. Can be combined with Series E radial-spherical-plain bearings in accordance with DIN-ISO 12240-1.
- Sliding combination: steel with bonded PTFE fabric.
For shaft diameters from 10 mm to 360 mm.
