DGE-DW-2RS
DGE 320 DW-2RS
DGE 320 DW (-2RS)
XXL-Large-radial-spherical-plain bearing with steel/PTFE, with -2RS lip seals on both sides, series C, DIN ISO 12240-1, maintenance free

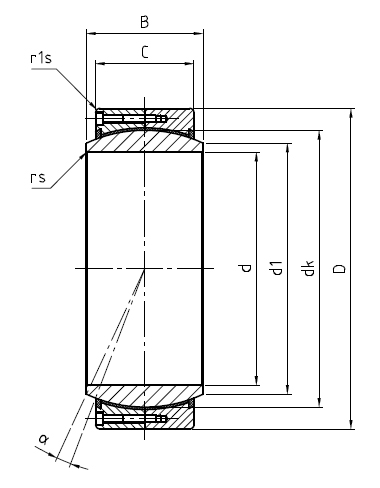

Measurements
| d (Bore) | 320 mm |
|---|---|
| B (Width) | 160 mm |
| D | 440 mm |
| d₁ | 344.6 mm |
| dₖ | 380 mm |
| C | 135 mm |
| rs mm | 1.1 mm |
| r1s mm | 3 mm |
| α (Tilt) | 4 |
| Weight | 77 kg |
| Radial clearance | 0 - 125 |
| C₀ (Static) | 20520 kN |
| C (Dynamic) | 12312 kN |
Details
Special characteristics:
- For use at high loads with a constant direction if smooth operation is required; limited suitability for alternating- and shock loads.
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
For shaft diameters from 320 mm to 600 mm. All items on request.
