DGE-DW
DGE 400 DW
DGE 400 DW (-2RS)
XXL-Large-radial-spherical-plain bearing with steel/PTFE, series C, DIN ISO 12240-1, maintenance free

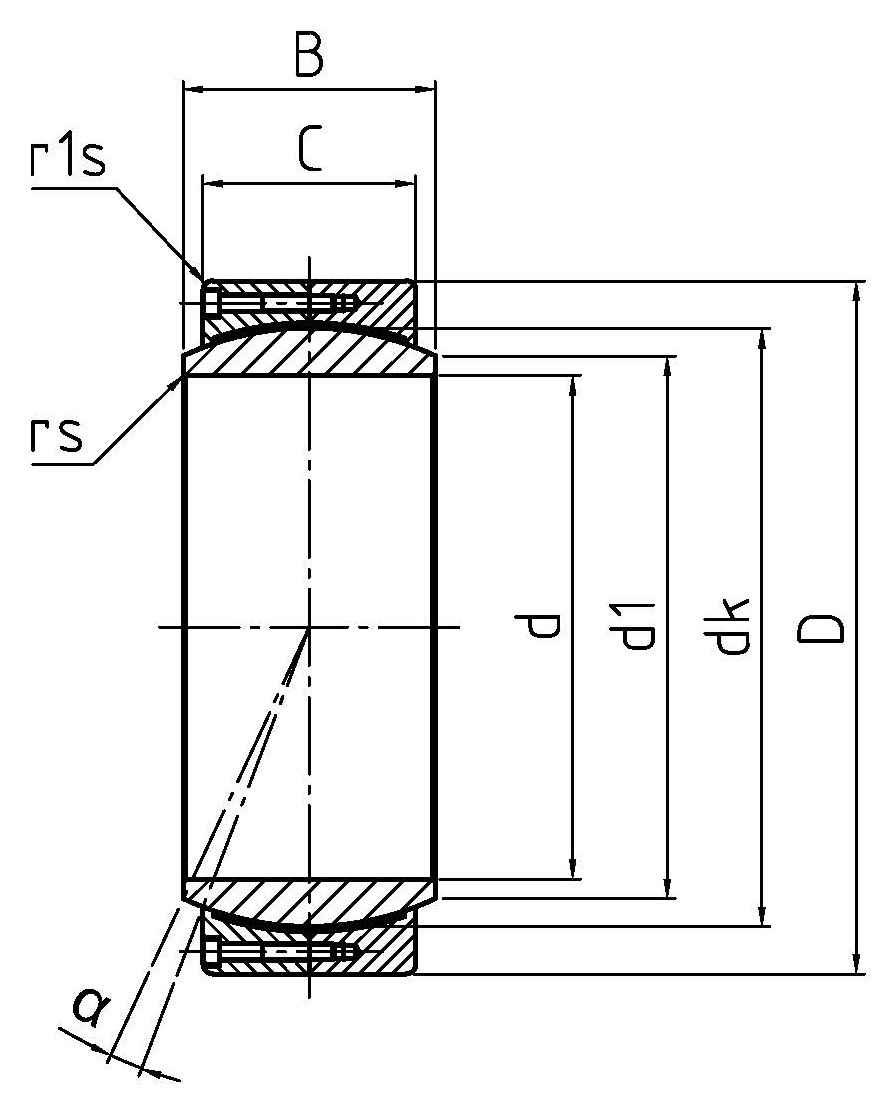

Measurements
| d (Bore) | 400 mm |
|---|---|
| B (Width) | 190 mm |
| D | 540 mm |
| d₁ | 429.8 mm |
| dₖ | 470 mm |
| C | 160 mm |
| rs mm | 1.5 mm |
| r1s mm | 4 mm |
| α (Tilt) | 3.9 |
| Weight | 133 kg |
| Radial clearance | 0 - 135 |
| C₀ (Static) | 36096 kN |
| C (Dynamic) | 21486 kN |
Details
Special characteristics:
- For use at high loads with a constant direction if smooth operation is required; limited suitability for alternating- and shock loads.
For shaft diameters from 320 mm to 600 mm. All items on request.
