DGE-FW-2RS
DGE 120 FW-2RS
Spherical-plain bearing with steel/PTFE, with -2RS lip seals on both sides, series G, DIN ISO 12240-1, maintenance free

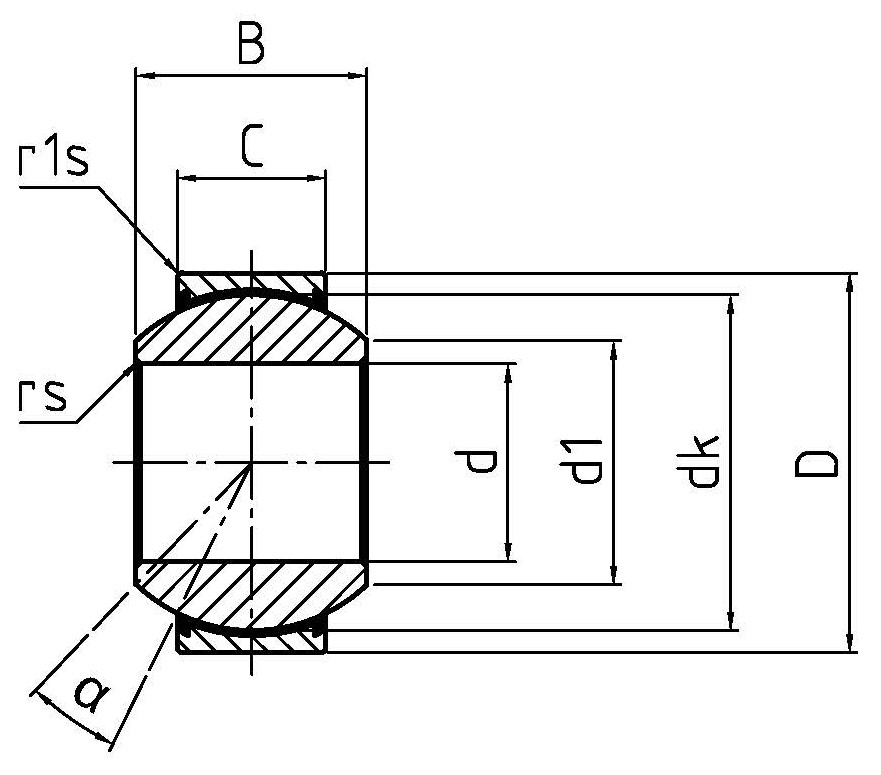

Measurements
| d (Bore) | 120 mm |
|---|---|
| B (Width) | 115 mm |
| D | 210 mm |
| d₁ | 138.5 mm |
| dₖ | 180 mm |
| rs mm | 1 mm |
| α (Tilt) | 16 |
| Weight | 14 kg |
| C (Dynamic) | 3015 kN |
| C₀ (Static) | 5025 kN |
| Radial clearance | 0 - 85 |
| C | 70 mm |
| rs1 mm | 1 mm |
Details
Special characteristics:
- Suitable for use with high unidirectional loads;
- Sliding combination: steel with bonded PTFE fabric;
- Wider joint ball and larger outside diameter compared to DGE_UK-2RS series, to enable higher load ratings and larger tilt angle;
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
