DGE-FW
DGE 06 FW
DGE 6 FW
Spherical-plain bearing with steel/PTFE, series G, DIN ISO 12240-1, maintenance free

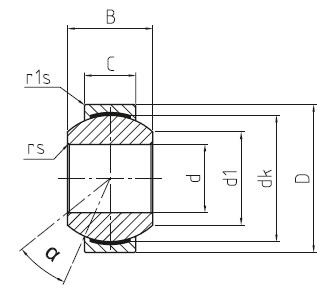

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 9 mm |
| D | 16 mm |
| d₁ | 9 mm |
| dₖ | 13 mm |
| rs mm | 0.3 mm |
| α (Tilt) | 21 |
| Weight | 0.008 kg |
| C (Dynamic) | 5.8 kN |
| C₀ (Static) | 14 kN |
| Radial clearance | 4 - 28 |
| C | 5 mm |
| rs1 mm | 0.3 mm |
Details
Special characteristics:
- Suitable for use with high unidirectional loads
- Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle;
- Sliding combination: steel with inset sliding film of bronze–PTFE compound material;
