DGE-SW
DGE 65 SW
Angular contact spherical-plain bearing with steel/PTFE, according to DIN ISO 12240-2, maintenance free

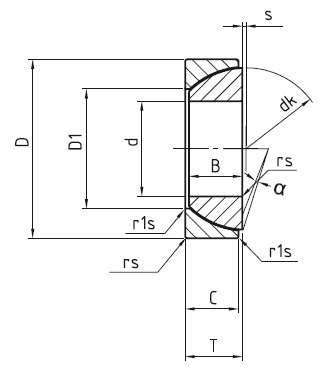

Measurements
| d (Bore) | 65 mm |
|---|---|
| B (Width) | 22 mm |
| D | 100 mm |
| dₖ | 92 mm |
| rs mm | 1.5 mm |
| α (Tilt) | 1.3 |
| Weight | 0.8 kg |
| C (Dynamic) | 260 kN |
| C₀ (Static) | 520 kN |
| C | 22 mm |
| r1s mm | 0.6 mm |
| d1 mm | 75.6 mm |
| s mm | 5 mm |
| t mm | 23 mm |
Details
Special characteristics:
- The following applies with the angular contact spherical plain bearing: Use for taking up axial loads in addition to the radial forces;
- Is also suited to alternating dynamic loads. The preferred choice for the transfer of high loads with low movements;
- Sliding combination: steel with bonded PTFE fabric.
For shaft diameters from 25 mm to 200 mm.
