DGE-UK-2RS
DGE 100 UK-2RS
Spherical-plain bearing with steel/PTFE, with -2RS lip seals on both sides, series E, maintenance free

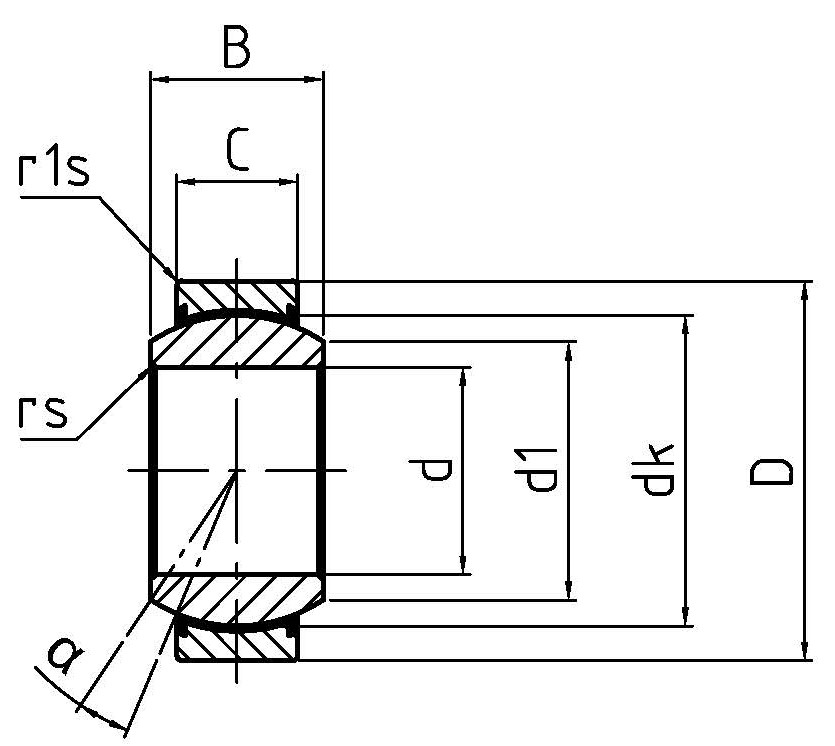

Measurements
| d (Bore) | 100 mm |
|---|---|
| B (Width) | 70 mm |
| D | 150 mm |
| d₁ | 109 mm |
| dₖ | 130 mm |
| rs mm | 1 mm |
| α (Tilt) | 5 |
| Weight | 4.45 kg |
| C (Dynamic) | 1717 kN |
| C₀ (Static) | 2862 kN |
| Radial clearance | 0 - 85 |
| C | 55 mm |
| rs1 mm | 1 mm |
Details
Special characteristics:
- Suitable for use with high unilaterally acting loads;
- Sliding combination:steel with bonded PTFE fabric;
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
