DGEC-FBAS
DGEC 440 FBAS
XXL-Large-radial-spherical-plain bearing with steel/PTFE, DIN ISO 12240-1, maintenance free

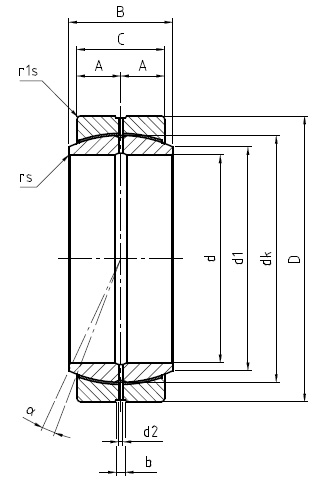

Measurements
| d (Bore) | 440 mm |
|---|---|
| B (Width) | 218 mm |
| D | 600 mm |
| d₁ | 472 mm |
| dₖ | 520 mm |
| rs mm | 1.5 mm |
| α (Tilt) | 3 |
| Weight | 180 kg |
| C | 185 mm |
| r1s mm | 4 mm |
| Radial clearance | 145 - 285 |
| C₀ (Static) | 8658 kN |
| C (Dynamic) | 5772 kN |
Details
Special characteristics:
- For use at high loads with a constant direction if smooth operation is required; limited suitability for alternating- and shock loads.
For shaft diameters from 320 mm to 600 mm. All items on request.
