SB TOP
SB8
Self-lubricating spherical-plain bearings, series K, DIN ISO 12240-1, maintenance free

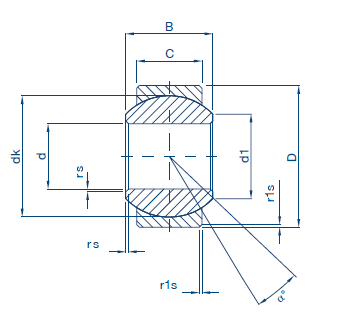

Measurements
| C₀ (Static) | 3.7 kN |
|---|---|
| d (Bore) | 8 mm |
| d₁ | 10.4 mm |
| dₖ | 15.6 mm |
| Radial clearance | 40-80 |
| rs mm | 0.3 mm |
| rs1 mm | 0.3 mm |
| α (Tilt) | 14 |
| B (Width) | 12 mm |
| C | 9 mm |
| D | 19 mm |
| Weight | 0.016 kg |
Details
CHIAVETTE UNIFICATE spherical plain bearings with steel/steel coupling, series K, self-lubricating, according to DIN ISO 12240-1
Outer ring: sintered steel impregnated with high efficiency lubricating fluid
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
Maintenance: maintenance-free
Temperature range: -30° C to +120° C
