SPK Standard
SPK10
Self-lubricating spherical-plain bearings with PTFE, series K, DIN ISO 12240-1, maintenance free

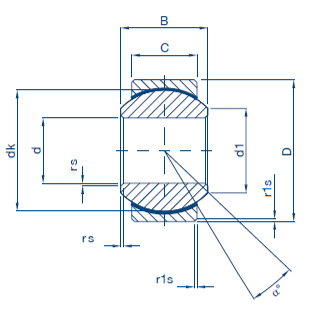

Measurements
| C₀ (Static) | 40 kN |
|---|---|
| d (Bore) | 10 mm |
| d₁ | 12.9 mm |
| dₖ | 19.1 mm |
| Radial clearance | 40-80 |
| rs mm | 0.3 mm |
| rs1 mm | 0.3 mm |
| α (Tilt) | 13 |
| B (Width) | 14 mm |
| C | 10.5 mm |
| D | 22 mm |
| Weight | 0.025 kg |
Details
CHIAVETTE UNIFICATE spherical plain bearings with steel/PTFE coupling, series K, self-lubricating, according to DIN ISO 12240-1
Outer ring: C45 (1.1191) carbon steel and PTFE bonded on the inner surface
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
Maintenance: maintenance-free
Temperature range: -40° C to +200° C
