DGE-AX
DGE 15 AX
Axial spherical-plain bearing with steel/steel, DIN ISO 12240-3, maintenance required

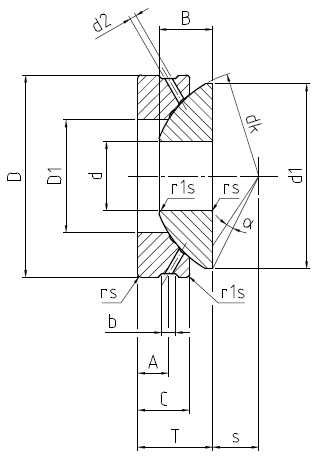

Measurements
| d (Bore) | 15 mm |
|---|---|
| B (Width) | 10.7 mm |
| D | 42 mm |
| d₁ | 38.9 mm |
| dₖ | 45 mm |
| rs mm | 0.6 mm |
| α (Tilt) | 7 |
| Weight | 0.12 kg |
| C (Dynamic) | 52 kN |
| C₀ (Static) | 260 kN |
| C | 11 mm |
| r1s mm | 0.2 mm |
| d1 mm | 24 mm |
| s mm | 10 mm |
| t mm | 15 mm |
| a mm | 6 mm |
Details
Special characteristics:
- The take up axial forces and pass supporting forces with low moment levels into the companion structure.
- Lubrication is by means of the housing cover. Can be combined with Series E radial-spherical plain bearings in accordance with DIN-ISO 12240-1.
For shaft diameters from 10 mm to 200 mm.
