DGE-ES-XXL
DGE 320 ES
XXL-Large-radial-spherical-plain bearing with steel/steel, series C, DIN ISO 12240-1, maintenance required

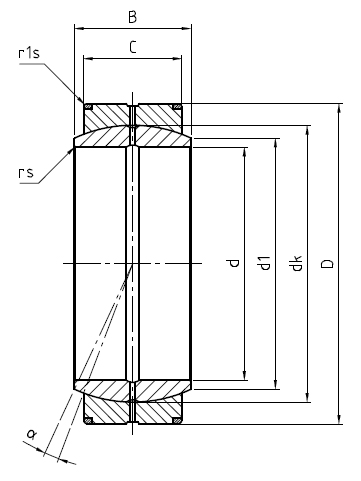

Measurements
| d (Bore) | 320 mm |
|---|---|
| B (Width) | 160 mm |
| D | 440 mm |
| d₁ | 344.6 mm |
| dₖ | 380 mm |
| C | 135 mm |
| rs mm | 1.1 mm |
| r1s mm | 3 mm |
| α (Tilt) | 4 |
| Weight | 77 kg |
| Radial clearance | 125 - 239 |
| C₀ (Static) | 21802.5 kN |
| C (Dynamic) | 4360.5 kN |
Details
Special characteristics:
- For use with high static and alternating loads and for shock loads.
- Optional on request -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing. Applies to DGE_ES-2RS-XXL.
For shaft diameters from 320 mm to 1000 mm. All items on request.
