DGE-ES
DGE 06 E
DGE 6 E
Spherical-plain bearing with steel/steel, series E, DIN ISO 12240-1, maintenance required

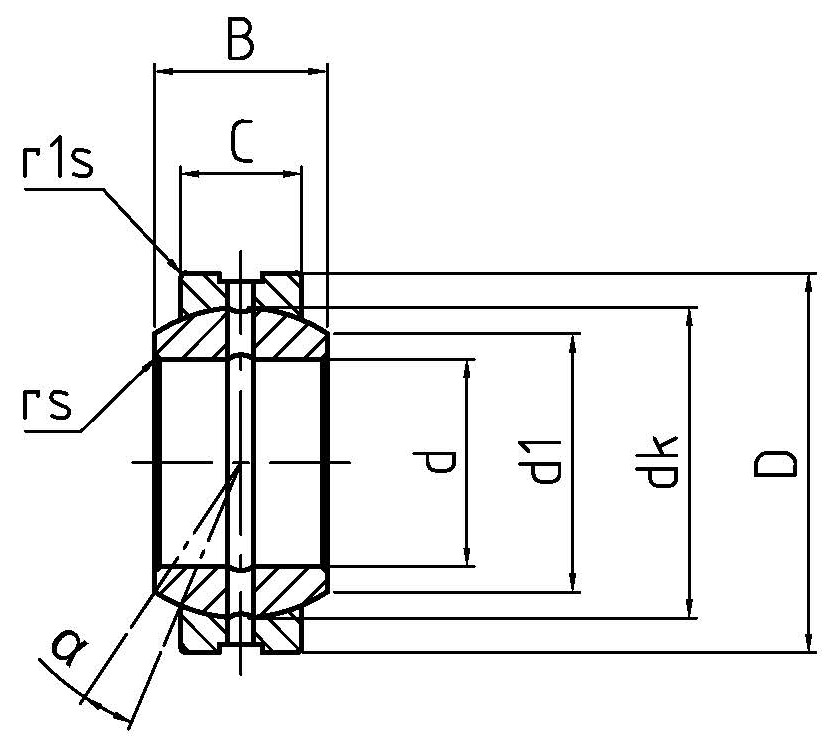

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 6 mm |
| D | 14 mm |
| d₁ | 8 mm |
| dₖ | 10 mm |
| rs mm | 0.3 mm |
| r1s mm | 0.3 mm |
| α (Tilt) | 13 |
| Weight | 0.004 kg |
| C (Dynamic) | 3.4 kN |
| C₀ (Static) | 17 kN |
| Radial clearance | 32 - 68 |
| C | 4 mm |
Details
Special characteristics:
- For use with high and alternating loads
