DGE-LO
DGE 320 LO
Spherical-plain bearing with steel/steel, series W, DIN ISO 12240-1, maintenance required

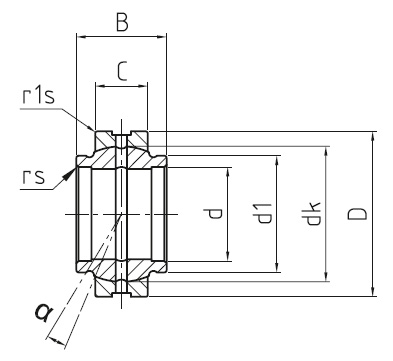

Measurements
| d (Bore) | 320 mm |
|---|---|
| B (Width) | 320 mm |
| D | 520 mm |
| d₁ | 405 mm |
| dₖ | 450 mm |
| rs mm | 1.1 mm |
| α (Tilt) | 4 |
| Weight | 225 kg |
| C (Dynamic) | 6200 kN |
| C₀ (Static) | 30500 kN |
| Radial clearance | 135 - 261 |
| C | 160 mm |
| rs1 mm | 1.1 mm |
Details
Special characteristics:
- For use with high and alternating loads,
- Spherical plain bearings, with the width of the inner rings expanded by a cylindrical neck, especially suitable as bearings for hydraulic cylinders. Spacing rings are not used on either side.
