DGE-SX
DGE 35 SX
Angular contact spherical-plain bearing with steel/steel, according to DIN ISO 12240-2, maintenance required

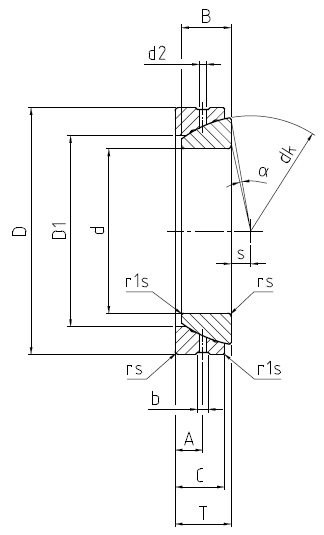

Measurements
| d (Bore) | 35 mm |
|---|---|
| B (Width) | 17 mm |
| D | 62 mm |
| dₖ | 56 mm |
| rs mm | 1 mm |
| α (Tilt) | 2.1 |
| Weight | 0.27 kg |
| C (Dynamic) | 76.5 kN |
| C₀ (Static) | 390 kN |
| C | 17 mm |
| r1s mm | 0.3 mm |
| d1 mm | 42.4 mm |
| s mm | 2 mm |
| t mm | 18 mm |
| a mm | 8 mm |
Details
Special characteristics:
- Use for taking up axial loads in addition to the radial forces.
- Is also suited to alternating dynamic loads.
For shaft diameters from 25 mm to 200 mm.
