DGEG-ES-2RS
DGEG 80 ES-2RS
Spherical-plain bearing with steel/steel, with -2RS lip seals on both sides, series G, DIN ISO 12240-1, maintenance required

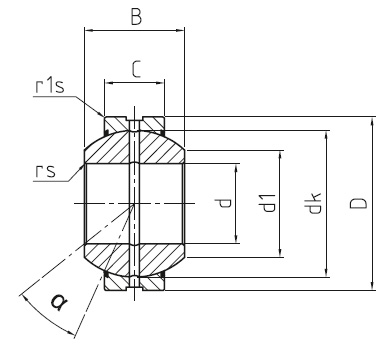

Measurements
| d (Bore) | 80 mm |
|---|---|
| B (Width) | 75 mm |
| D | 130 mm |
| d₁ | 87.2 mm |
| dₖ | 115 mm |
| rs mm | 1 mm |
| r1s mm | 1 mm |
| α (Tilt) | 14 |
| Weight | 3.5 kg |
| C (Dynamic) | 490 kN |
| C₀ (Static) | 2450 kN |
| Radial clearance | 72 - 142 |
| C | 50 mm |
Details
Special characteristics:
- For use with high and alternating loads and larger angles of tilt,
- Wider joint ball and larger outside diameter compared to DGE_ES-2RS series, to enable higher load ratings and larger tilt angle;
- -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
