DGEG-ES
DGEG 06 E
DGEG 6 E
Spherical-plain bearing with steel/steel, series G, DIN ISO 12240-1, maintenance required

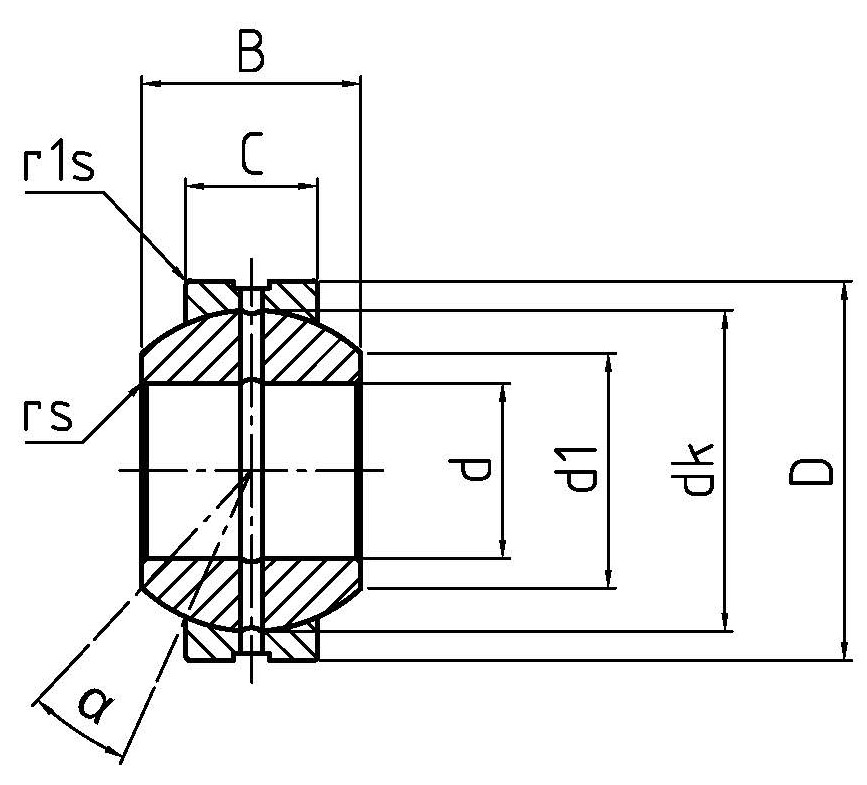

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 9 mm |
| D | 16 mm |
| d₁ | 9.4 mm |
| dₖ | 13 mm |
| rs mm | 0.3 mm |
| r1s mm | 0.3 mm |
| α (Tilt) | 21 |
| Weight | 0.008 kg |
| C (Dynamic) | 5.5 kN |
| C₀ (Static) | 27.5 kN |
| Radial clearance | 32 - 68 |
| C | 5 mm |
Details
Special characteristics:
- For use with high and alternating loads and larger angles of tilt;
- Wider joint ball and larger outside diameter compared to DGE_ES series, to enable higher load ratings and larger tilt angle;
