DS-PB
DS 06 PB
DS 6 PB
Spherical-plain bearing with steel/bearing brass, series K, similar to DIN ISO 12240-1, maintenance required

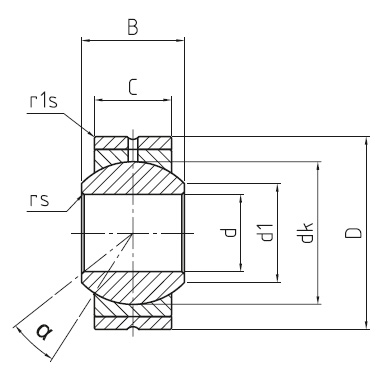

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 9 mm |
| D | 18 mm |
| d₁ | 8.9 mm |
| dₖ | 12.7 mm |
| rs mm | 0.3 mm |
| α (Tilt) | 13 |
| Weight | 0.013 kg |
| C (Dynamic) | 8.3 kN |
| C₀ (Static) | 19 kN |
| Radial clearance | 20 - 60 |
| C | 6.75 mm |
| rs1 mm | 1.2 mm |
Details
Special characteristics:
- For use with high impact loads and alternating stresses in radial and axial directions,
- Preferred in situations with large swivelling movements.
