WLK
WLK 06 - 00 - 500
Spherical-plain bearings with ball bearing

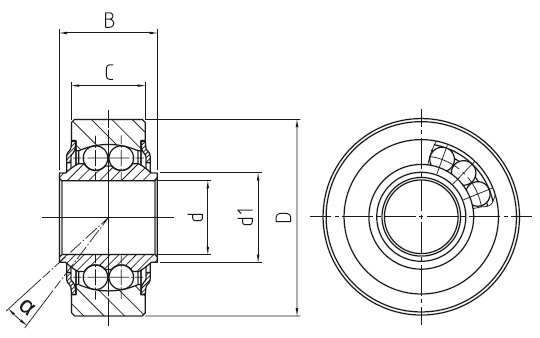

Measurements
| d (Bore) | 6 mm |
|---|---|
| B (Width) | 9 mm |
| D | 20 mm |
| d₁ | 9 mm |
| α (Tilt) | 8 |
| Weight | 0.02 kg |
| C (Dynamic) | 2.8 kN |
| C₀ (Static) | 0.7 kN |
| Radial clearance | 10 - 30 |
| C | 6.75 mm |
| n max | 1350 rpm |
| Y (Axial) | 2.09 |
| Y₀ (Axial) | 2.19 |
Details
Special characteristics:
- For high speeds, wide swivelling angles or rotating movements,
- Low bearing friction,
- Low maintenance due to long-term lubrication with food-grade approval;
- Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.
For shaft diameters from 6 mm to 40 mm.
