WLT
WLT 12 - 00 - 500
Spherical-plain bearings with roller bearing, cage design

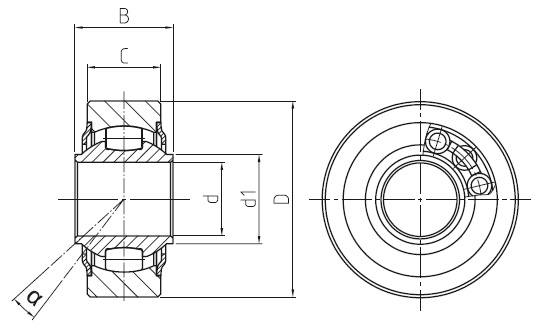

Measurements
| d (Bore) | 12 mm |
|---|---|
| B (Width) | 16 mm |
| D | 32 mm |
| d₁ | 14.6 mm |
| α (Tilt) | 7.5 |
| Weight | 0.06 kg |
| C (Dynamic) | 10.3 kN |
| C₀ (Static) | 6.6 kN |
| Radial clearance | 10 - 30 |
| C | 12 mm |
| n max | 1125 rpm |
Details
Special characteristics:
- For high speeds, wide swivelling angles or rotating movements,
- High loads,
- Low maintenance due to long-term lubrication with food-grade approval;
- Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.
VORBAL WLT-bearings with circular lubrication groove and lubrication input are available on request.
For appropriate use of this type it is absolutely mandatory that the lubrication input is not mounted in the direction of load! For shaft diameters from 10 mm to 40 mm.
